GYS Aluminum Pulse Mig Welders

WELDING & Cutting

The GYS AUTOPULSE 220-M3 Double Pulse Mig / Mag Welder / 3 Drive Machine Provides Excellent Performance On Aluminum / Silicon Bronze And Steel, User-Friendly Intelligent Software Provides "Ready To Go Performance" TESLA Repair Program Approved

"Your Affordable Ticket to Mig Welding Mastery"

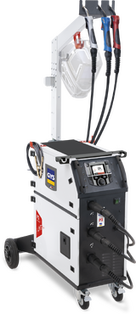

GYS Autopulse 220-M3 Mig Welder

Unleash Precision Power And Simplicity:
Explore the GYS Autopulse 220-M3 Double Pulse Mig/Mag Welder
"Your Ultimate Welding Partner"

Standard Accessories Included With The Autopulse 220-M3 Mig Welder

GYS AUTOPULSE 220-M3 / Double Pulse Mig / Mag Welder - TESLA Approved

The MIG / MAG pulsed welder with 3 integrated wire feeders is ideal for car body repairers. Equipped with a digital PFC (Power Factor Correction) the Autopulse supplies double pulsed welding quality comparable to three-phase products.

Designed for highest performance, the GYS Autopulse 220-M3 features multiple synergic settings which enables exceptional arc quality.

The Autopulse 220-M3 is a very advanced double pulse mig-mag welder. It has 3 welding torches for use with multiple materials including Steel, Aluminium, and Brazing (CuSi3 / CuAl8) Enjoy increased quality & productivity in car body repair.

 OPTIMIZED MIG / MAG DOUBLE PULSE SETTINGS

  • Welding processes: Standard, Pulse, Pulse in Pulse, Cold Pulse, and Manual.
  • Trigger modes: 2T - 4T - Spot, Delay, and Tack functions.
  • Accurate Digital Control over the welding cycle: Creep Speed, Soft start, Hot start, Up slope,
  • Down slope, Crater Fill, Post gas, etc.

  • 2 specific compartments isolate and prevent cross-contamination of the Aluminum wire.
  • Steel wire Ø 0.6 / 0.8 / 1.0 mm (upper compartment n ° 1)
  • Stainless Steel wire Ø 0.8 / 1.0 mm (upper compartment n ° 1)
  • Aluminum wire Ø 0.8 / 1.0 / 1.2 (Isolated in lower compartment n ° 2)
  • CuSi and CuAl wire Ø 0.8 / 1.0 mm (upper compartment n ° 1)
 MAXIMUM PRODUCTIVITY & Performance
  • 4 microprocessors to give four times the processing power.
  • 3-wheel drive system with 2 active drive rolls.
  • Up to 3 wire reels of Ø 200 mm accepted.
  • Automatic torch detection while pulling the trigger.
  • Balancing arm with torch support (x3) and welding helmet holder
  • Push pull torch compatibility (24V)
  • Spool Gun compatibility (ideal for soft wire(AlSi5 / AlSi12).

SIMPLIFIED WELDING Through Ultrafast Intelligent Microprocessor Software
  • 57 (Adjustable) synergic curves ensure outstanding welds for a large range of
     materials, wire sizes, material thickness, and gas.
  • The fully synergic mode calculates the optimal welding parameters automatically, this can also be adjusted manually, ideal for car-body applications with very thin sheet materials.

  FRIENDLY ERGONOMIC INTERFACE
  • Brand new Hi-Def Interface which has been simplified and enhanced with car-body repair
      technician's operating habits.
  • Large Color screen for simple control of the weld cycle settings.
  • 2 control knobs and 4 keys for simple and intuitive navigation of the menus.
  • Machine and synergies easily updated by USB key.
  • Save up to 500 welding programs for repetitive tasks.

SOLID MOBILITY
  • Built solid reinforced structure.
  • The 220-M3 Frame supports 2 Gas bottles (2x4m3) with a convenient low loading height.
  • Fastest Grab & Go torches and start welding features.
autopulse 220-M3 aluminum pulse mig welder
