CJ Star A Liner Floor Pulling Drive On System

Frame Machines

When you need more pulling capabilities the addition of the Star A Liner Cheetah floor pulling system makes great sense.
The CJ Star A Liner Auto Body Floor System is your answer for your production requirements and a great price to please

Complete Drive On Floor Pulling System Comes With Everything You Need
It's a Frame Machine without taking up valuable space

Star A Liner Cheetah Floor Puling System
CHEETAH® FLOOR RACK SPECIFICATIONS - Complete auto body pulling solution
Length of two treadways together:
12 ft. (366 cm)
Width of treadway:
21 in. (53 cm)
Tower height:
6 ft. (183 cm)
Weight:
360 lbs (163 kg)
Power required for hydraulics:
100 psi air (6.89 bar)
Pulling power, hydraulics:
10 ton (9 metric ton)

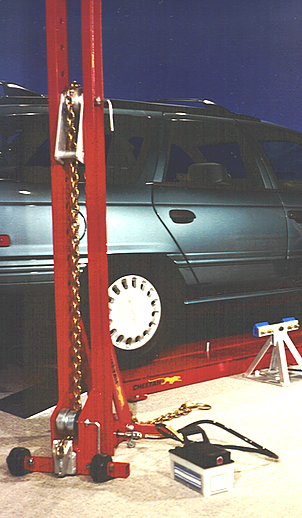

*Pinchweld clamp & treadway design has changed slightly from the photos shown.

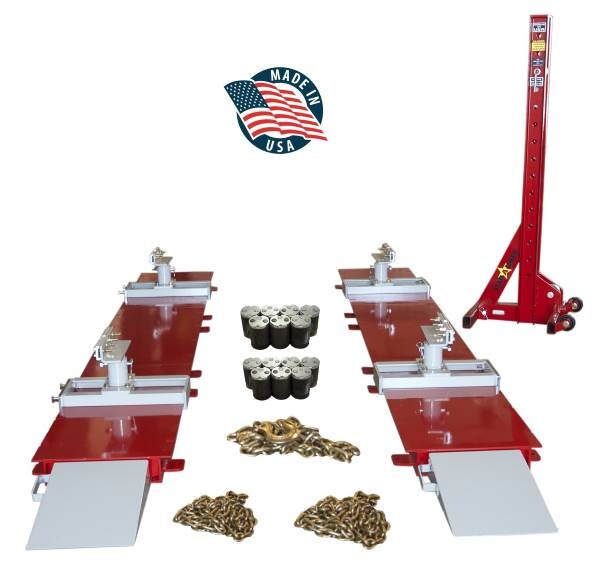

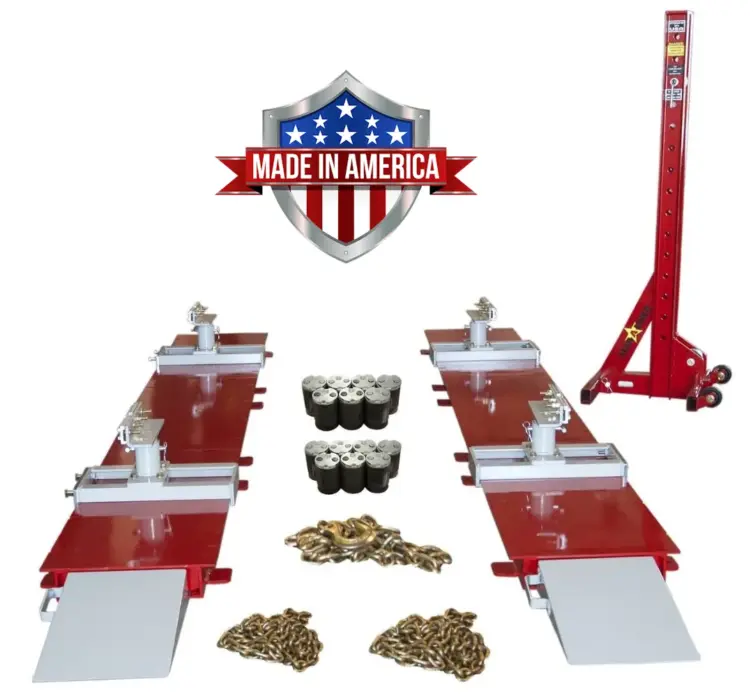

Cheetah Floor Rack System Consists of:
1 – 6’ (183 cm) portable pulling post.
1 – hyd. pump, hose, and ram.
2 – 8’ (244 cm) chains
1 – 12’ (366 cm) chain
2 – 12’ (366 cm) treadways sections

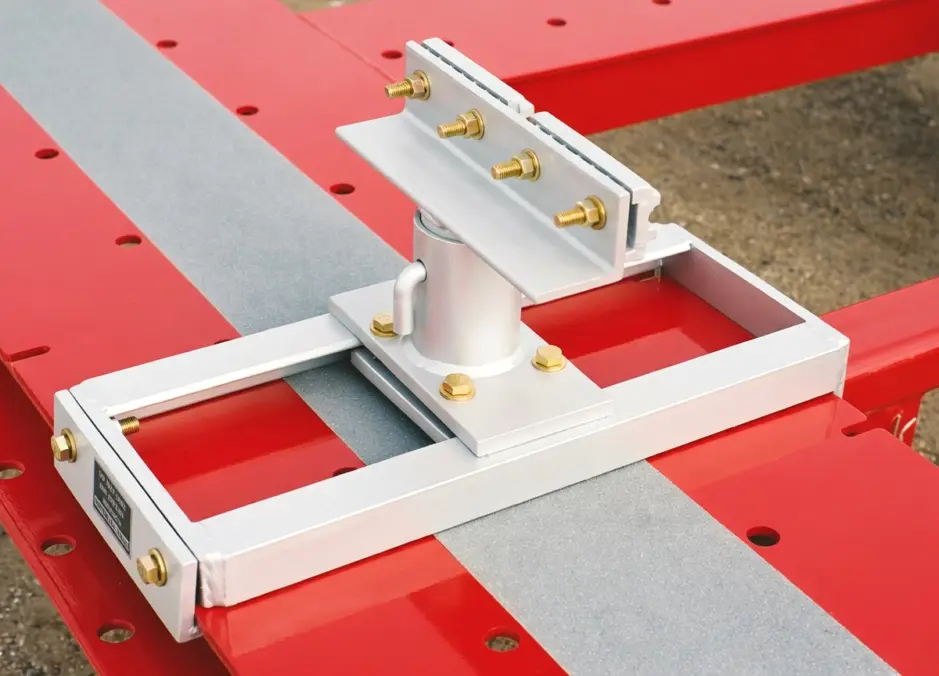

1 – (set of 4) pinchweld  clamps
2 – portable ramps
14 – floor/anchor pots



Get A Free Quote

   305-793-9503

Proudly Made In The USA
Powerful 10 Ton Puller
Star A Liner Floor Pulling Post
