American Freedom GT Frame Machine

Frame Machines

Made In USA With Lasting Quality
Perform Structural Repairs With Speed And Precision With The Exceptional Qualities Of The American Freedom GT Frame Machine

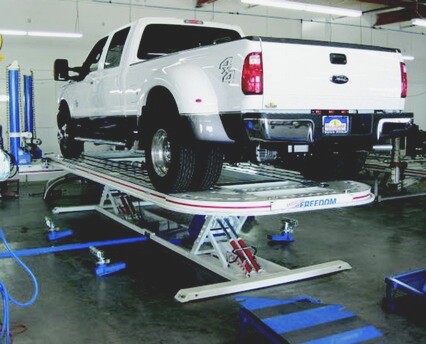

American Freedom GT Frame Machine with Pickup Truck
The American Freedom GT Frame Machine tackles truck repair with Power, Braun and Elite Technician Friendly Sophistication..
Unleash the massive arsenal of size and multiple pulling capabilities with the convenience of multiple height adjustment for the fastest repairs on all vehicles Large & small.

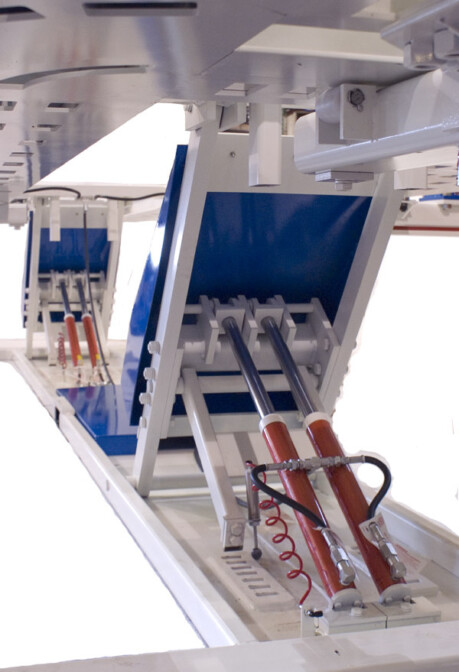

American Freedom GT Tandem Lift
Dual Tandem Hydraulics Develop 12,000 Lbs Of Lifting Power
American Freedom CJ Inc Frame Rack

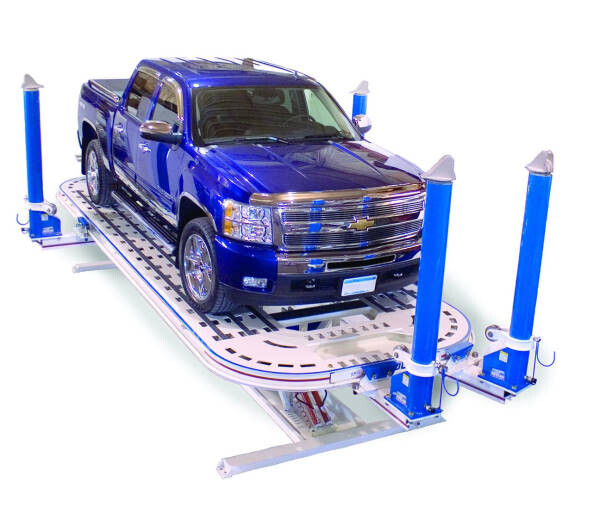

*Signature American Freedom GT
Frame Rack Specifications

(22 ft. 4 tower model)
Length of bed top: 22 ft.
Length w/towers extended:
     26 ft. 11 in.
Width of bed: 92 in.
Width w/towers extended: 12 ft. 6 in.
Width of treadway: 28.5 in.
Width between treadways: 35.5 in.
 Overall height: 9 ft. 11 in.      Tower heads lowered: 9 ft. 1 in.
Loading height: 12 in.
Working height: 12 in. up to 42 in.
Hydraulics: 10  ton, all electric over hyd. or all air over hyd.
Power required:
 120v, 20 amp, dedicated service for electric over hyd. model
Optional tower configurations: 2, 3 or 4 towers
Tie downs: 222
Lift capacity: 12,000 lbs.
*Specifications are subject to change without notice.

Special Offer

Available in 2,3 or 4 tower versions with full 360 degree capability

play video

From any angle the American Freedom GT is ready to provide enhanced structural repair capabilities

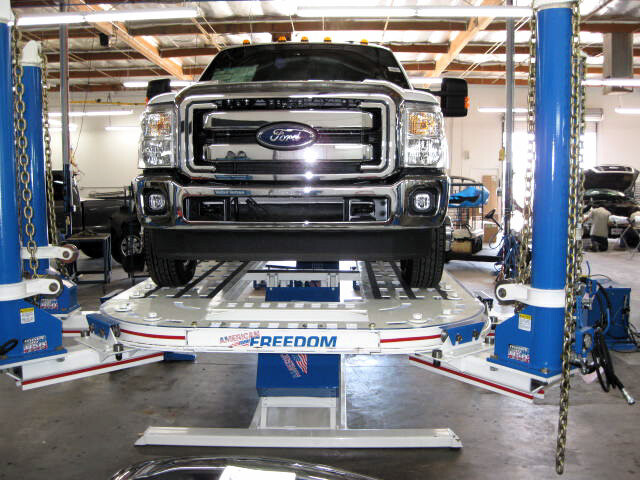

GT frame machine front view
Quality engineering and technician friendly features make for happy shop owners

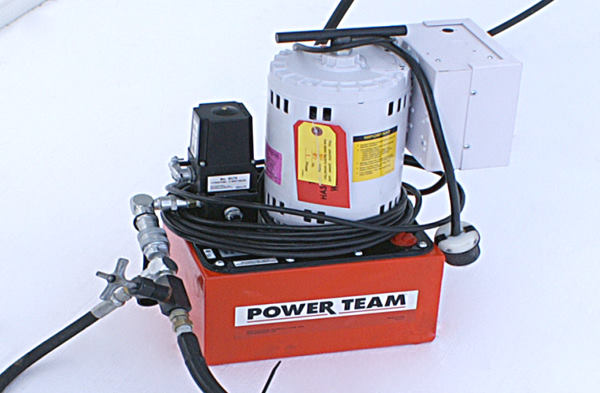

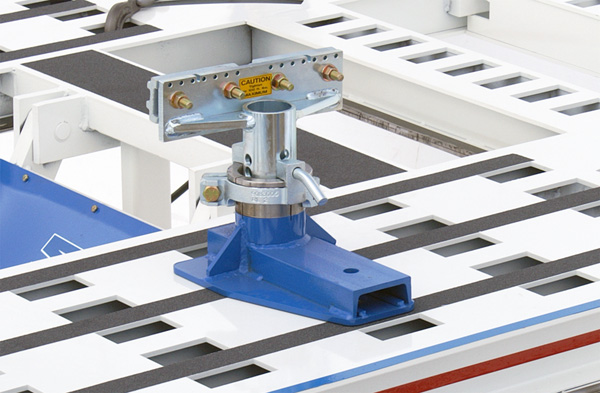

Universal Anchor Stand                Power Team Frame Machine Pump

 Quality Full Function Uni-Body Holding System            Electric Pump Powers All Functions

American Freedom GT Frame Rack Pulling Pickup Truck
Transform your auto body shop into an incredible production powerhouse with  the Signature American Freedom GT Frame Machine. With every Convenience option at your command the
American Freedom GT Frame Machine will substantially cut your repair times, enhance your botttom line and attract the best technicians.
