Compuspot 900 Fusion

Compuspot Approvals
Compuspot Vehicle Manufacturer Approvals

Compuspot certifications
AMH Canada Industry Certifications
Your "Total Assurance" the CompuSpot line of
Spot Welders are industry recognized and tested
for the highest performance and saftey standards by OEM manufacturers

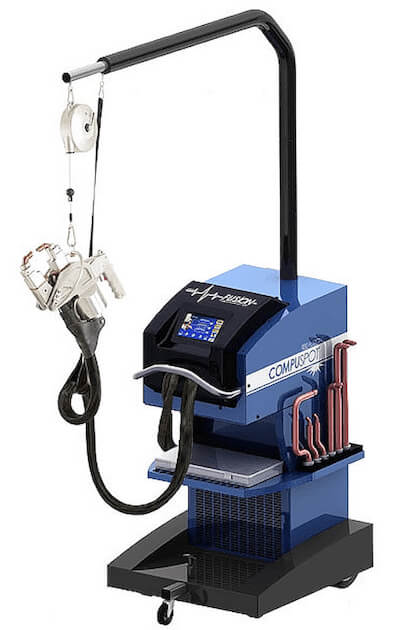

Compuspot 900 Fusion Inverter Spot Welder
Compuspot 900 Fusion Spot Welder Accessories & Specifications

Automatic Detection of Metal Type and Thickness
The CompuSpot 900 Fusion uses intelligent resistance algorithms which accurately measures the thickness of the metal and its electrical resistance to determine its properties and surface coating.

Based upon the measurements, the Fusion will automatically adjust the settings or suggest a factory specified weld program. The Technician
No longer needs to worry about setting the correct welding parameters. It is all done correctly the first time.

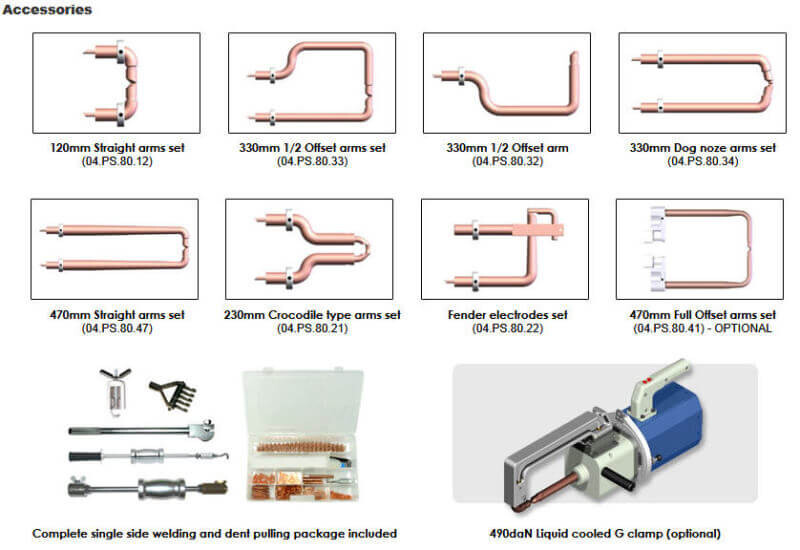

AMH Compuspot 900 Fusion Welder Accessories

Compuspot Five Year Welder Warranty                   Our Best Selling Spot Welder

        Lady Pointing to Watch The Welder Video        Watch The Fusion Spot Welder Video

We are Official Authorized AMH Canada Distributors for Spectratek, Spectratherm, Compuspot, Ultramig, Blue Boy Benders, AlumAtech Aluminum Repair Station - CSA & CE Approvals - CSA CE & CCC Approvals


Watch The 900 Fusion Slide Show For More Information

Learn The Welder Facts Now

Learn all the finer details of the CompuSpot 900 Fusion and why it should be your first consideration is featured in this Dynamic Powerpoint Presentation.

arrow Click the Enlarge Player Symbol for a perfect view.


The ideal Intelligent Spot Welder for welding today's high strength dual phase and boron steels with up to 630 daN (1,386lbf) of tip pressure, 14,000 amps of welding current, and no guess work. Automatic recognition
of sheet thickness and material type (HSS, UHSS, Boron, etc).

Incredible Intelligent Performance is Done Automatically with hardly any input from the user.

  • Automatic setting of weld power, weld time, and tip pressure.

  • Automatic detection of metal type and thickness.

  • USB port for data transfer and program updates.

  • Weld history storage. Each job weld is documented with important information which can be printed for future recall providing documentation on every aspect of each spot weld.

  • Liquid cooling all the way to the electrode tips is passed through a high performance liquid cooling pump and specially designed Radiator system. Enhanced cycle time is achieved providing quicker weld jobs and a cooler running machine. Less Heat Equalls - Proper Spot Welds, Longer Job Welding and Longer Product Lifespan.

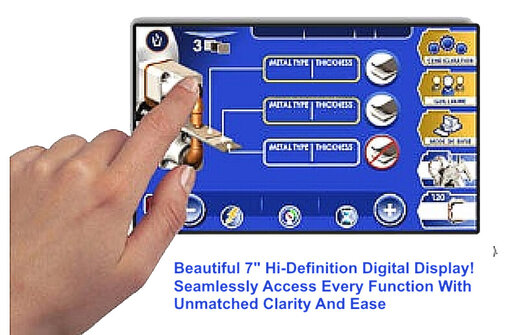

  • 7" touch screen control panel with high resolution color

(800x480 pixels).

  • EMF shielded cables optional. Protects technicians and vehicles from EMF radiation.

  • CSA, CE & CCC approvals.            Equipment Financing Is Available

Our Pro Line Systems Team Assessment of AMH Compuspot Spot Professional line of Spot Welders is definitely very high with specifications meeting or exceeding any other brand in it's class. Now with the entry of the latest advancement of the CompuSpot 900 Fusion the Bar Has Been Raised on capabilities and power unique only to this spot welder.
CompuSpot welders are designed by their own fully staffed engineers with full implementation of all welder component manufacturing processes.

The Compuspot 900 Fusion Inverter Resistance Spot Welder is built like a Rolex watch - with tried and true performance, power and automotive manufacturer approvals there is really no other welder that offers the kind of bang for your buck Power & Performance. Today's auto body shops must have what the Compuspot 800, 850 and The 900 Fusion brings to the table. These high performance, high value spot welders are what is necessary to be able to deal with all the new high strength steels showing up on more and more vehicles than ever before, including Boron and it's variations.

Quality Products by this manufacturer include several Spot Welder choices and Spectratek and Spectratherm Infrared paint curing lamps, Blue Boy Pipe Bending Machines, UltraMig Mig welders, Dent Pullers and a host of other Industry Certified Professional Body Shop Repair Equipment.

AMH Canada has maintained a substantial world wide private label business manufacturing products for big names as Snap-On, Blackhawk, MAC, Matco, Motorguard, Brewco, S.A.M. Marquette, NAPA, Herkules, Iwata, Blue Boy, Cobra, just to name a few.

Pro Line Systems is proud to offer AMH Canada products to our customers.
Ultimate Products and Value from a Solid long time industry leader means greater Value and Satisfaction for our customers.

We are official Authorized AMH Canada Distributors for Spectratek, Spectratherm, Compuspot, Ultramig, Blue Boy Benders, AlumAtech Aluminum Repair Station - CSA & CE Approvals - CSA CE & CCC Approvals
