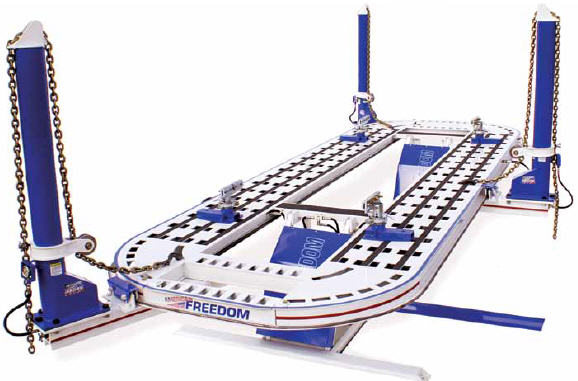

American Freedom Frame Machine

Frame Machines

The American Freedom is a true auto body technician's dream frame machine. Engineered with all the features that are top on the list of must have qualities, the American Freedom frame machine truely has it all.. And It's All American Made.

American Freedom Frame MachineFrame Machine Made in the USA






   Lease Purchase Available


     Editor's Choice Product

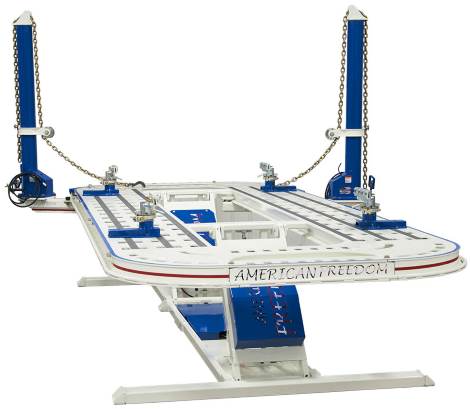

*20ft 3-tower model shown, available with 2, 3 or 4 towers


American Flag Page Break

Up Close Features...
American Freedom Anchor Stand
American Freedom Frame Machine

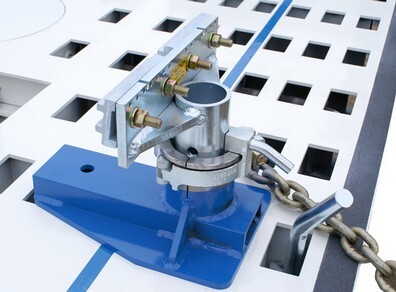

The American Freedom Anchor System is
a proven superior design offering full Height and Rotation capabilitites for for the fastest setups and repairs ever... With 222 Tie Down Pockets precision is yours...

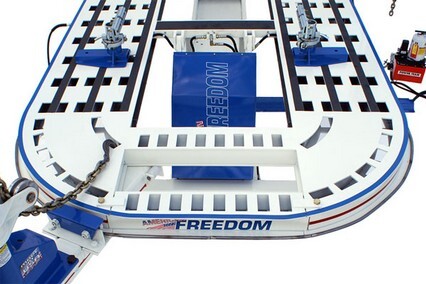

The American Freedom frame machine features removable crossmembers for easy access to vehicle damage and setup. Round deck design enables easy movement of towers precisely where You Want them...


elevate Your Work   Red Arrow look here Raise Your Profits
American Freedom Frame Machine Electric Lift







Profit logo

Work Smart & Safe

For The Smart Auto Body Repair Facility That Demands The Best In Quality And Value

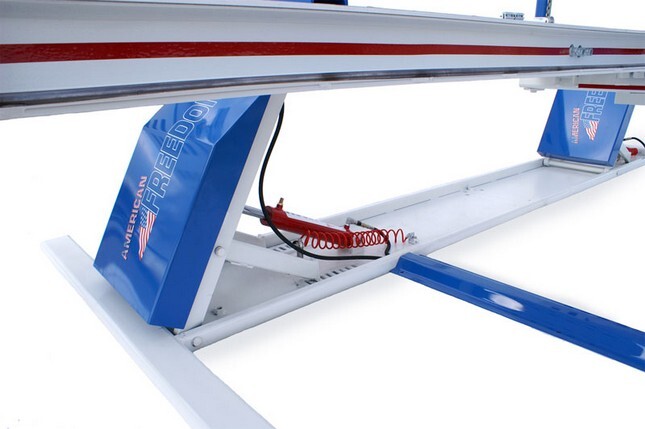

The American Freedom frame machine lifting system offers 9,900 Lbs of lifting force and adjustable heights of 12 inches to 42 inches providing a tremendous advantage over any fixed height frame machine. Tech's choose the convenient working height that best suits the type of repair and watch your technicians increase their productivity to peviously unattainable levels.

 USA flag page divider


American Freedom Frame Rack Corner roller view
User friendly tower design with smooth roller bearings enables exceptionally easy tower positioning
Elevate



American Freedom frame machine electric hydraulic pump Easy Payment Plan
Request Frame Machine Quote
American Freedom hydraulic quick connections

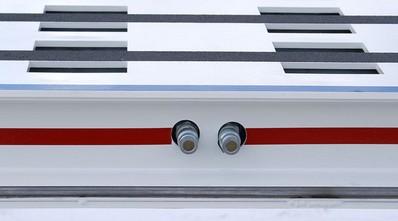

Internal Plumbing provides convenient quick connect hydraulic couplers / 5 on each side for a total of ten for convenient hookup of towers in ANY Position.
Specifications:

Length Of Mainframe (Bed Top) 20 ft
Length with towers extended 24 ft 1" Inch
Width Of Bed 88" Inch
Width with towers extended 11 ft 4" Inch
Width of treadway 26.25" Inch
Opening between treadways 35.5" Inch
Overall Height Raised: 9ft 11 inch / Lowered 9ft 1" inch
Lowered Loading Height: 12" inch
Adjustable Working Heights:  12"inch to 42" inch
Hydraulics: All Electric Or Air Over Hydraulics @ Ten Tons
Electrical Power Required: 120V 20Amp Dedicated power source
Tower configuration choice of 2 - 3 or 4 towers
Tie Down openings: 222
Lift Capacity: 9,900 Lbs

Specifications are subject to change without notice.
Specifications Above Are For 20ft / 3-Tower Model
Call Pro Line Systems for latest pricing


305-793-9503

The American Freedom GT 92" Wide Deck Frame Machine
American Freedom GT - 92" Wide Deck Frame Machine
