Star-A-Liner Cheetah 360 Frame Machine

Frame Machines

Star-A-Liner / Cheetah Frame Machines Offer The Highest Value In Quality And Affordability. Made in USA Makes For the Best Value In the Industry... Made In The USA

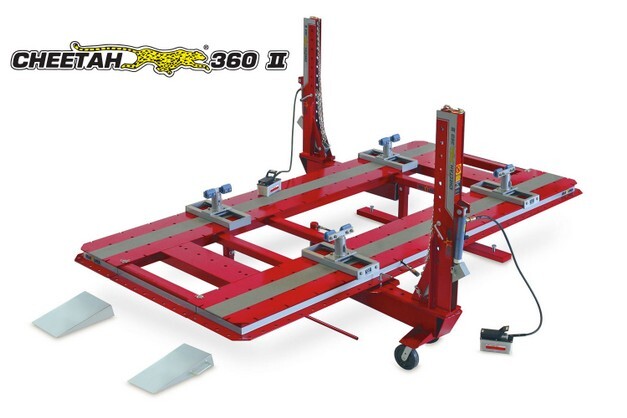

The Cheetah 360 II 15 Foot frame rack is the most economical, quality made in USA frame machine with 2 full 10 Ton pulling towers

Click Machine To Enlarge Super View

Cheetah Frame Rack Apply for Star A Liner financing
Perfect for working on smaller vehicles and saving shop space
Frame Machine Made In The USA
CHEETAH® 360 II SPECIFICATIONS Cheetah 360 Uni Body Clamps
Length of bed (top):
15 ft. (457 cm)
Length with towers extended:
20 ft. 9 in. (632 cm)
Width of bed:
84 in. (213 cm)
Width with towers extended:
13 ft. 4 in. (406 cm)
Width of treadway:
24 in. (61 cm)
Width between treadway:
36 in. (91 cm)
Overall height:
6 ft. 6 in. (198 cm)Star-A-Liner Towers Close Positioning
Tower height:
5 ft. (152 cm)
Working height:
24 in. (61 cm)
Weight:
3780 lbs. (1715 kg)
Power required for hydraulics:
100 psi air (6.89 bar)
Pulling power, hydraulics:
10 ton (9 metric ton)
Pulling radius:
360 degrees
Specifications are subject to change without notice



Cheetah Star-A-Liner

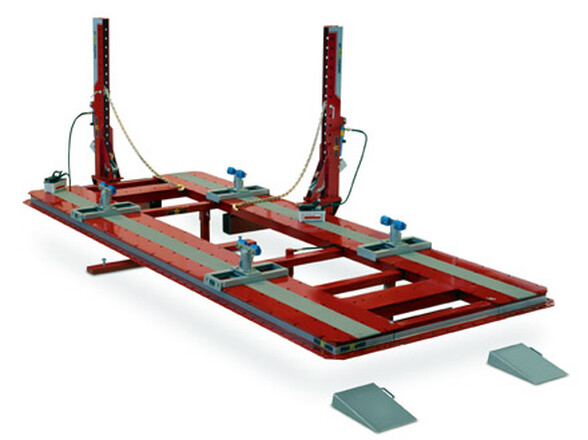

Cheetah 360 frame machine CHEETAH 360 18Ft Frame Machine Star-A-Liner Frame Rack Made In USA
Designed for Uni-body cars up to extended cab trucks

                      Click Machine To Enlarge Super View

Cheetah 18ft Frame MachineFinance Equipment Opportunity


  Specifications Cheetah 360 II Frame Machine
length of bed (top)18 ft, length w/towers extended 23 ft. 9 in. width of bed 84 in. width w/towers extended 13 ft. 4 in.
width of treadway 24 in. weight 4400 lb. width between treadways 36 in. overall height 7 ft. 9 in.
tower height 5 ft. working height 24 in. hydraulics 10 ton. pulling radius 360 degrees

Specifications are subject to change without notice



Star-A-Liner Frame Machine   Cheetah 360 Frame RackProudly Made In The USA

Designed for unibody cars on up to full size four door heavy duty dually trucks.

                    Click Machine To Enlarge Super View

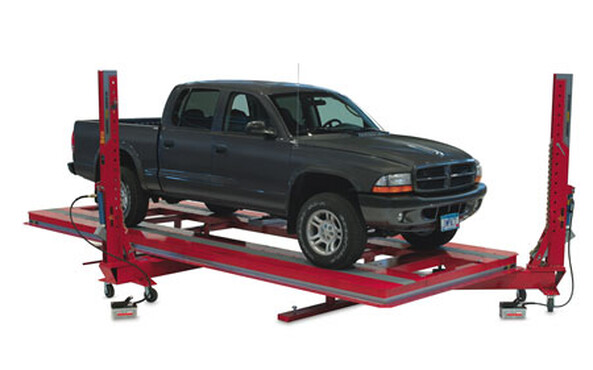

Cheetah 360 Series 20 Frame Machine








Finance it Now




20 Feet of Solid 360 Frame Straightening Capabilities Are Yours Wherever And Whenever You Need
Financing Plan Available



Specifications of Cheetah Series 20 Frame Machine
length of bed (top) 20 ft. length w/towers extended 25 ft. 10 in.width of bed 92 in. width w/towers extended  14 ft.
width of treadway 28 in. weight 6200 lb. width between treadways 36 in. overall height 8 ft. 6 in.
tower height 6 ft. 6 in. working height 24 in. hydraulics 10 ton. pulling radius  360 degrees
Specifications are subject to change without notice
