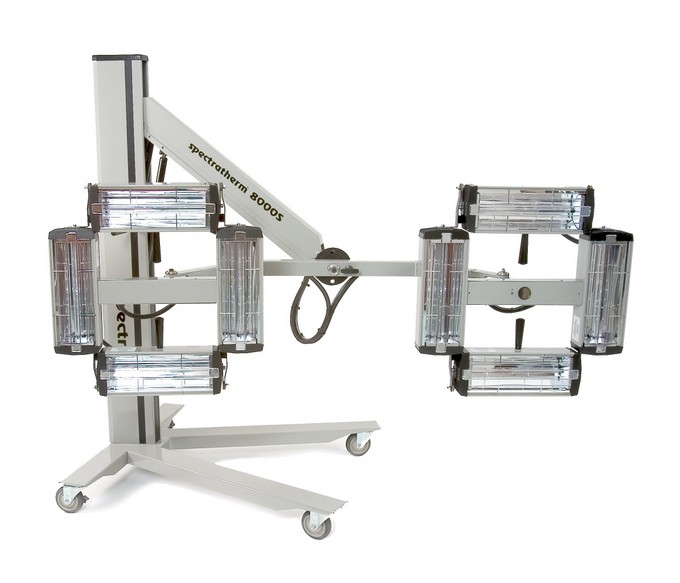

Spectratherm 8000S paint curing lamp

Paint Curing Lamps

SPECTRATEK 8000SD

Set & Forget Automatic Thermal Integrated Sensor System (TISS) technology provides exclusive features for increasing your auto body paint production to the highest levels. What used to take hours to dry now takes just minutes.

Spectratek 4000SD Technical Information
8000SD Infrared Paint Curing Lamp by Spectratek
Multi-Position Capability to conform to the exact dimensional
area of the vehicle

Our Professional Opinion of the Spectratek 8000SD Short Wave

Infrared Paint Curing System


There is no wonder why the Spectratek 8000SD Short Wave Infrared Curing Lamp has earned such an outstanding world wide reputation.
From the ground up the Spectratek 8000SD Short Wave Infrared Curing lamp is solidly constructed to meet the demanding challenges of every day automotive collision repair needs.

The Spectratek 8000S has an enormous heat zone cure area of 3,081sq.in. Consisting of two separate independently operated light arrays containing four 1000W lamps each (Total of Eight) delivering a total of 8000 Watts. Each lamp head is totally adjustable to easily conform to the exact shape of the panel or replacement part being cured.

The Thermal Integrated Sensor System (TISS) allows for very fast set up and regulation of all functions.
Everything from automatic distance sensors which emit an audible tone when the proper distance from the panel is achieved. The heat sensor automatically adjusts the temperature throughout the entire curing process.
The Spectratek 8000SD Short Wave Computerized IR Heat Paint Curing System cures on any substrate from primers in 3 to 8 minutes and water based fillers in 7 to 9 minutes.

Modulated ramp-up time provides maximum control and heat transfer from the bottom layer up. No Trapped Solvents to cause come backs.
The auto timed shutoff reduces chance of damaging finish due to overheating.

Gas operated arm for easy height positioning and a high tech flat panel fully digital touch pad control system rounds out this highly desirable professional heat curing machine.
It has been constructed to be the easiest curing lamp for easy break down maintenance.

We are Official Authorized AMH Canada Distributors for Spectratek, Spectratherm, Compuspot, Ultramig, Blue Boy Benders, AlumAtech Aluminum Repair Station - CSA & CE Approvals - CSA CE & CCC Approvals
Giulio Valle


Watch The Spectratek 8000SD Video


Ready For UV Curing? You Should Be!
We've Got The Best Industry Approved Spectratek UVLED Ultraviolet Curing Lamps.
Your Shop Production Will Skyrocket And So Will Your Reputation.
Cures UV primers, putty, topcoats in seconds
