American Freedom MAXX

Frame Machines
American Freedom MAXX Frame Machine Unwraping
UNWRAPPING THE MAXX
MAXX Frame Machine Specifications

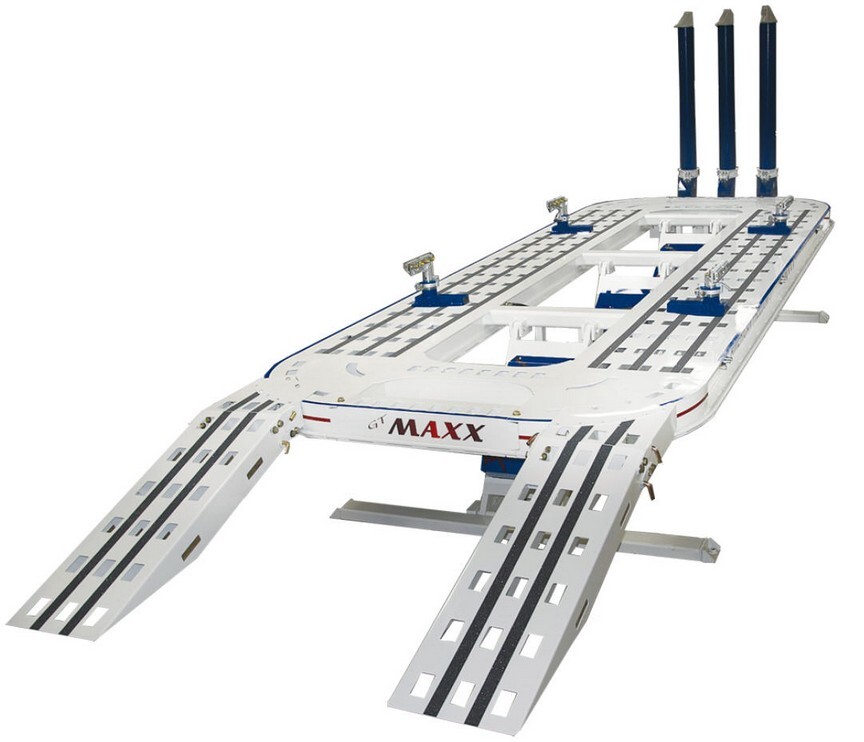

American Freedom MAXX Frame Heavy Duty Frame Machine
The American Freedon MAXX Triple Lift

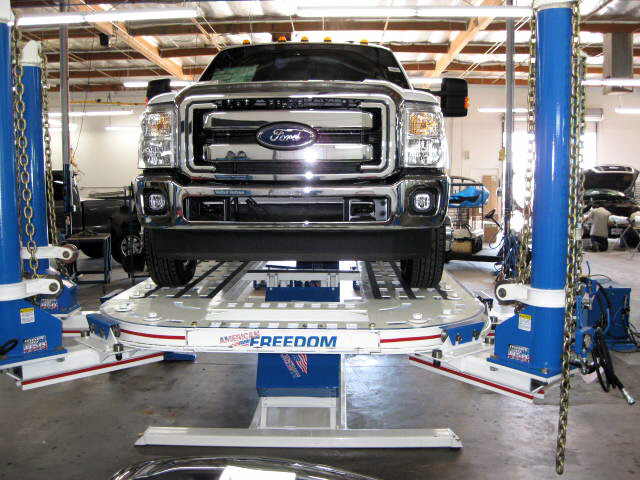

American Freedom MAXX Front View
Signature American Freedom Maxx
  • Length Of Bed Top: 22 ft.
  • Length w/towers extended: 12 ft. 9 in.
  • Width of bed: 96 in.
  • Width with towers extended: 12 ft. 9 in.
  • Width of treadway: 30.5 in.
  • Width between treadways 35. in.
  • Tie downs 222

  • Optional tower configurations: 2,3, or 4 towers
  • Lift capacity: 15,000 ibs.
  • Overall height: 9 ft. 11 in.
  • Tower heads lowered: 9 ft. 1 in.
  • Loading height 14 in.
  • Working height: 16 in. up to 42 in.
Hydraulic: 10 Ton, all electric over hydraulic. Or all air over hydraulic.
Power required: 120V 20 amp, dedicated service for electric over hydraulic model

*Specifications subjet to change without notice
