Signature Hybrid Frame Machine

Frame Machines

Signature Hybrid Frame Machine Logo
The Signature Hybrid Frame Machine has been developed to bring one of the most popular frame machine designs to a new standard of feature rich quality, perfection and performance.
Best Choice

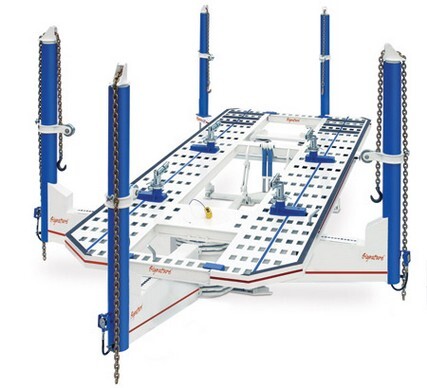

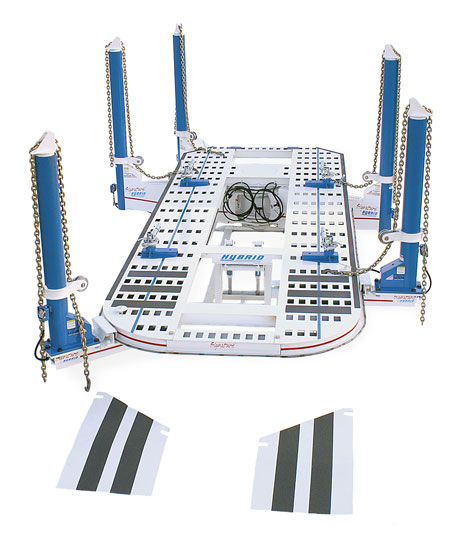

Signature Hybrid Full View 5 Tower Model

Signature 360 Hybrid Towers On Side
The Hybrid's Multiple Pulling Towers are ready for action with 360 degree coverage wherever and whenever needed for fast precision frame and body repairs.

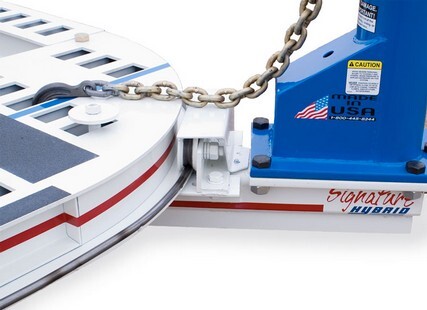

Signature Hybrid Tower Rollers




Specially designed bearings provide easy positioning of towers for fast and easy setups.
USA Product

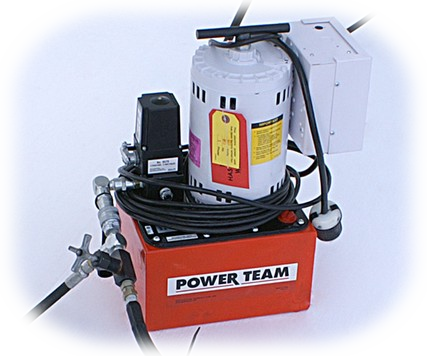

Frame Machine Pump

A Hi-Performance central electric hydraulic pump stores conveniently out of the way providing 10 tons of simultaneous pulling force with equalized pressure at the touch of a button, enabling the damage to reverse itself just as it went in. Less pulling force is needed when several towers spread the energy throughout the entire damaged area. Your benefit is safe and precision repairs in the least amount of time.

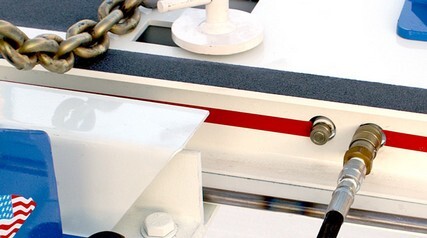

Hydraulic ports are always in reach to connect towers to the hydraulic system
Signature Hybrid Hydraulic Fittings
Hybrid Frame Machine

The Signature Hybrid Frame Machine can be configured to suit any application or price point our customers need. Configurations for the Signature Hybrid range from 3 towers to 5 towers and 20ft or 22ft Versions.

Available Financing
Understand The Facts
Why Upgrade To Signature Hybrid Frame Machines?


Some frame machines offer strength but insufficient tower mobility. Others have movable towers but not enough pulling power or the ability to work on wider vehicles.The Signature Hybrid has solved these challenges with an auto body frame rack that combines power, precision and all-around access. So you and your team no longer have to sacrifice one for the other.


Hybrid Frame Rack Advantages:
  • 88 inch Wide Deck / 20 or 22 foot sizes available.
• 10-ton hydraulics in all towers provides the pulling power.
• Movable towers make group pulls possible.
• 360-degree access, less dead zones. quicker repairs
• Comes with 2 or 3 movable towers, your choice.
• V-rollers allow smooth, one-handed positioning of towers along track.
• Easy tie-down system secures track towers for pulling.
• Removable cross members allow access to front and rear of vehicle.
• Ability to group towers at drive-on end enabling multiple pulls for safer and precision repairs.
• Hydraulic quick connections on frame rack bed, 2 per side.
• Two-year limited warranty.
• Signature Hybrid frame machines are made in the USA.
Call for special price







Signature Hybrid
Frame Rack Specifications

Length of bed top: 20 ft.
Length w/towers extended:
     24 ft. 6 in.
Width of bed: 88 in.
Width w/towers extended: Pivot end 13 ft. 4 in., Track end 11 ft. 4 in.
Width of treadway: 28 in.
Width between treadways: 32 in.
 Overall height: 9 ft. 3 in.
Working height: 31 in.
Hydraulics: 10  ton
Power required:
 120v, 20 amp, dedicated service
Specifications are subject to change without notice.
Strength & Tower Mobility Combined.
Our Signature Hybrid Frame Machines
were created with versatility and power at top of mind. They have 3 pivoting pulling towers at one end of the bed and 2 (or 3) movable towers that ride on a track around the other end. The pivoting towers provide strength, stability and repair width while the movable towers make 360-degree pulling access possible.
This  combination gives auto body technicians 10-ton hydraulics at each tower plus 360-degree pulling access to  the vehicle frame. That makes the Hybrid a great frame rack with less "dead zones".  The towers glide into position with smooth, one-handed motion around the track making tower group pulls easier than ever.
Call Us For Information
The Signature Hybrid Frame Rack combines the best features of the Signature 5-tower rack and the American Freedom 3-tower rack.  The Signature frame straightener is limited to lighter pulls, because two of the five towers must be lowered so vehicles can be driven on and off the rack.  The American Freedom frame rack has three mobile towers that can be rotated freely around the outside perimeter of the frame rack, which increases the versatility and improves the ease of repairs for the technicians, but limits the width of the cars it is able to withstand.  The purpose of the Signature Hybrid model is to combine the versatility of the width of cars the Signature frame rack can hold with the increased pulling power of the American Freedom frame rack, enhancing the all-around efficiency of the Signature Hybrid Frame Rack.
For more information and pricing on Signature Hybrid frame machines,
Hybrid Frame Machine Brochure
Customers also looked at the American Freedom frame machine See Why...
